Magnetic drill presses are the heavy hitters of metalworking, giving you clean, accurate holes in thick steel without fuss. Serious pros lean on them for structural steel, fab shops, and tough field work.
This guide walks through nine trusted models, featuring VEVOR’s 1550W, 1450W, 1300W, and dedicated metal units, plus several ZELCAN 1550W drills with stout 2,878–2,922 lbf magnetic bases, coolant systems, and variable-speed motors.
You’ll see how durability, included coring bits, overload protection, and portability stack up, so it’s easier to match a drill to your workload and workflow.
| VEVOR 1550W Magnetic Drill Press 2″ Capacity |
| Heavy-Duty Workhorse | Motor Power: 1550W copper motor | Max Hole Diameter: 2 in capacity | Max Drilling Depth: 2 in depth | VIEW LATEST PRICE | Read Our Analysis |
| VEVOR 1450W Magnetic Drill Press with Coring Bits |
| Best For Fabrication Shops | Motor Power: 1450W copper motor | Max Hole Diameter: 2 in (50 mm) max boring diameter | Max Drilling Depth: 2 in max coring depth | VIEW LATEST PRICE | Read Our Analysis |
| VEVOR 1300W Portable Magnetic Drill Press with Bits |
| Best Value Kit | Motor Power: 1300W copper motor | Max Hole Diameter: 1.57 in max boring diameter | Max Drilling Depth: 2 in max drilling depth | VIEW LATEST PRICE | Read Our Analysis |
| ZELCAN 1550W Portable Magnetic Drill Press with Bits |
| Feature-Rich Performer | Motor Power: 1550W copper motor | Max Hole Diameter: 2 in diameter | Max Drilling Depth: 2 in depth | VIEW LATEST PRICE | Read Our Analysis |
| ZELCAN 1550W Portable Magnetic Drill Press |
| Pro-Grade All-Rounder | Motor Power: 1550W copper motor | Max Hole Diameter: 2 in diameter | Max Drilling Depth: 2 in depth | VIEW LATEST PRICE | Read Our Analysis |
| DEWALT 2″ Magnetic Drill Press (DWE1622K) |
| Contractor’s Choice | Motor Power: 10A motor (roughly comparable to ~1100–1200W at 120V) | Max Hole Diameter: 2 in drill press capacity | Max Drilling Depth: 4 in drill travel (supports up to 2 in capacity cutters) | VIEW LATEST PRICE | Read Our Analysis |
| ZELCAN 1550W Magnetic Drill Press with Bits |
| Maximum Holding Power | Motor Power: 1950W copper motor (1550W working power) | Max Hole Diameter: 2 in diameter | Max Drilling Depth: 2 in depth | VIEW LATEST PRICE | Read Our Analysis |
| ZELCAN 1550W Portable Magnetic Drill Press with Bits |
| Best For Overhead Work | Motor Power: 1550W copper motor | Max Hole Diameter: 2 in diameter | Max Drilling Depth: 2 in depth | VIEW LATEST PRICE | Read Our Analysis |
| VEVOR 1550W Magnetic Drill Press for Metal |
| Most Versatile Pick | Motor Power: 1550W motor | Max Hole Diameter: 2.4 in (60 mm) coring diameter | Max Drilling Depth: 2.4 in (60 mm) max coring depth (implied by 60 mm capacity) | VIEW LATEST PRICE | Read Our Analysis |
More Details on Our Top Picks
VEVOR 1550W Magnetic Drill Press 2″ Capacity
In case you need a compact yet powerful mag drill for serious metalwork, the VEVOR 1550W Magnetic Drill Press with 2″ capacity stands out for its strong 1550W copper motor and 13,000N (2922 lbf) electromagnetic hold, keeping the tool locked in place while you bore clean, accurate holes. You get 500 RPM with 10 adjustable gears, so you can dial in the ideal speed for each hole diameter. The integrated depth scale helps you hit precise depths, while the coolant bottle and quick push-fit tube keep cutters cool. Its titanium magnesium alloy guide rail resists wear, extending service life in tough industrial, construction, and rail environments.
- Motor Power:1550W copper motor
- Max Hole Diameter:2 in capacity
- Max Drilling Depth:2 in depth
- Magnetic Holding Force:2922 lbf / 13000N
- Speed Range / Control:500 RPM, 10 adjustable gears
- Cooling System:Coolant bottle with quick push-fit tube
- Additional Feature:10-speed gear adjustment
- Additional Feature:Depth scale on frame
- Additional Feature:Anti-corrosion guide rail

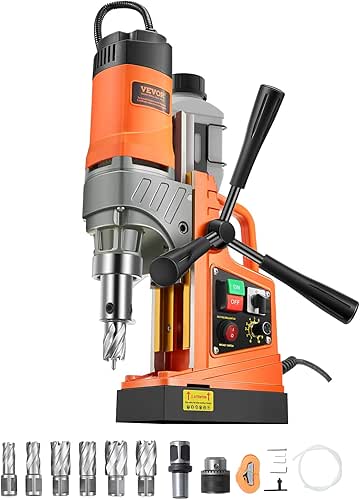

VEVOR 1450W Magnetic Drill Press with Coring Bits
VEVOR’s 1450W Magnetic Drill Press featuring Coring Bits stands out if you require serious power and stability for frequent metal drilling. Its 1450W copper motor, 0–800 RPM variable speed, and 10 gears allow you to dial in precision. You’ll bore up to 2 inches in diameter and 2 inches deep, anchored with a 2878 lbf electromagnetic base that holds firm at any angle.
You get overload protection, active cooling, and a titanium magnesium guide rail for long service. The integrated scale, ergonomic handle, and six included coring bits make it practical for fabrication, construction, and power-plant work on steel plate at least 10 mm thick.
- Motor Power:1450W copper motor
- Max Hole Diameter:2 in (50 mm) max boring diameter
- Max Drilling Depth:2 in max coring depth
- Magnetic Holding Force:2878 lbf / 12800N
- Speed Range / Control:0–800 RPM, 10 adjustable gears
- Cooling System:Cooling system for fast heat dissipation
- Additional Feature:Overload protection system
- Additional Feature:Includes 6 coring bits
- Additional Feature:Ergonomic triple-crank handle
VEVOR 1300W Portable Magnetic Drill Press with Bits
Serious metalworkers who need strong holding power and consistent accuracy will appreciate the VEVOR 1300W Portable Magnetic Drill Press with Bits. You get a 1300W copper motor driving up to 810 RPM, with a 1.57-inch max boring diameter and 2-inch drilling depth, so you can handle serious fabrication and onsite work.
The electromagnetic base delivers a hefty 2922 lbf of holding force, while the titanium magnesium alloy guide rail resists wear and corrosion. A frame scale and coolant bottle help you drill cleaner and extend cutter life. VEVOR includes 11 bits (12–27mm) so you’re ready for varied steel projects.
- Motor Power:1300W copper motor
- Max Hole Diameter:1.57 in max boring diameter
- Max Drilling Depth:2 in max drilling depth
- Magnetic Holding Force:2922 lbf / 13000N
- Speed Range / Control:810 RPM fixed speed
- Cooling System:Coolant bottle with quick push-fit tube
- Additional Feature:Includes 11 drill bits
- Additional Feature:Dual-end anchoring base
- Additional Feature:Optimized internal structure
ZELCAN 1550W Portable Magnetic Drill Press with Bits
ZELCAN’s 1550W Portable Magnetic Drill Press with Bits stands out in case you need a powerful, versatile rig for frequent steel work on job sites or in the shop. Its 1550W copper motor drives annular cutters up to 2″ deep and 2″ in diameter, and you get 11 core bits to cover common hole sizes.
The solid iron base delivers 2,922 lbf of magnetic holding force, so you can drill horizontally, vertically, or overhead with confidence. Stepless 0–580 rpm control, forward/reverse, depth scale, and an 8.5 fl. oz. coolant tank keep drilling precise, cool, and efficient for demanding industrial tasks.
- Motor Power:1550W copper motor
- Max Hole Diameter:2 in diameter
- Max Drilling Depth:2 in depth
- Magnetic Holding Force:2922 lbf / 13000N
- Speed Range / Control:0–580 RPM stepless, forward & reverse
- Cooling System:8.5 fl. oz. coolant tank
- Additional Feature:Forward/reverse drilling
- Additional Feature:Stepless speed control
- Additional Feature:11 included core bits
ZELCAN 1550W Portable Magnetic Drill Press
In case you need a powerful mag drill that can tackle large holes in steel without being tied to a fixed workstation, the ZELCAN 1550W Portable Magnetic Drill Press is built for that kind of work. You get a 1550W copper motor that drives bits up to 2″ deep and 2″ in diameter, with stepless speed control from 0–580 rpm and forward/reverse to clear chips fast.
Its iron base turns into a 2,922 lbf electromagnet, so you can drill horizontally, vertically, or upside down. A built-in depth scale, 8.5 fl. oz. coolant tank, and rugged housing keep it accurate, cool, and durable.
- Motor Power:1550W copper motor
- Max Hole Diameter:2 in diameter
- Max Drilling Depth:2 in depth
- Magnetic Holding Force:2922 lbf / 13000N
- Speed Range / Control:0–580 RPM stepless, forward & reverse
- Cooling System:8.5 fl. oz. coolant tank
- Additional Feature:Forward/reverse drilling
- Additional Feature:Stepless speed dial
- Additional Feature:8.5 fl oz coolant
DEWALT 2″ Magnetic Drill Press (DWE1622K)
DEWALT’s 2″ Magnetic Drill Press (DWE1622K) stands out in case you need a compact, jobsite-ready machine that still delivers serious power and capacity. Its 10-amp motor, backed with overload protection electronics, lets you push hard into tough steel without worrying about burning it up.
You get two speed settings to match cutters and materials, plus a Quick Change chuck system that keeps bit swaps fast. With a 2-inch capacity and 4-inch drill travel, it handles heavy-duty structural work confidently. The magnetic base locks you down securely, while the magnetic coolant bottle mounts on either side or nearby for flexible setup.
- Motor Power:10A motor (roughly comparable to ~1100–1200W at 120V)
- Max Hole Diameter:2 in drill press capacity
- Max Drilling Depth:4 in drill travel (supports up to 2 in capacity cutters)
- Magnetic Holding Force:Magnetic base (force not specified)
- Speed Range / Control:2-speed settings with Quick Change chuck
- Cooling System:Magnetic coolant bottle, mountable on either side or work surface
- Additional Feature:Two mechanical speed settings
- Additional Feature:Quick-change chuck system
- Additional Feature:Magnetic coolant bottle
ZELCAN 1550W Magnetic Drill Press with Bits
Serious metalworkers who need portable power and precision will find the ZELCAN 1550W Magnetic Drill Press with Bits a strong contender. You get a 1950W copper motor (1550W working power) driving up to 650 rpm, drilling holes up to 2 inches in depth and diameter. The 11 included bits cover most shop needs.
Its 13,900N magnetic force and solid iron base lock firmly to ferrous surfaces, yet the unit stays relatively portable. You’ll dial in cut quality with stepless speed control and a reversible direction switch, while the 16.9 fl. oz. coolant tank keeps temperatures stable on demanding industrial jobs.
- Motor Power:1950W copper motor (1550W working power)
- Max Hole Diameter:2 in diameter
- Max Drilling Depth:2 in depth
- Magnetic Holding Force:3125 lbf / 13900N
- Speed Range / Control:Up to 650 RPM, stepless control, reversible
- Cooling System:16.9 fl. oz. coolant tank
- Additional Feature:1950W peak motor power
- Additional Feature:16.9 fl oz coolant
- Additional Feature:Reversible drilling direction
ZELCAN 1550W Portable Magnetic Drill Press with Bits
Power-focused metalworkers who need a truly portable solution will appreciate the ZELCAN 1550W Portable Magnetic Drill Press with Bits. You get a 1550W copper motor that drives holes up to 2 inches deep and 2 inches in diameter, plus 6 core bits sized for common fabrication tasks.
The solid iron base delivers 13,000N of magnetic force, so you can drill horizontally, vertically, or overhead with confidence. Stepless speed from 0–580 rpm and forward/reverse make drilling and bit removal smoother. A built-in depth scale and 8.5 fl. oz. coolant tank help you drill precisely and protect your bits on demanding jobs.
- Motor Power:1550W copper motor
- Max Hole Diameter:2 in diameter
- Max Drilling Depth:2 in depth
- Magnetic Holding Force:2922 lbf / 13000N
- Speed Range / Control:0–580 RPM stepless, forward & reverse
- Cooling System:8.5 fl. oz. coolant tank
- Additional Feature:Forward/reverse functionality
- Additional Feature:6 included core bits
- Additional Feature:Horizontal/vertical/upside-down use
VEVOR 1550W Magnetic Drill Press for Metal
In case you need one magnetic drill that can core, tap, and drill with serious holding power, the VEVOR 1550W Magnetic Drill Press for Metal stands out as a versatile workhorse. You get true 3‑in‑1 capability: coring up to 2.4 inches, twist drilling from 3–16 mm, and tapping M3–M16 threads with confidence.
Its 13,000 N magnetic force and thick iron base keep it locked to vertical or sloped steel. The 0–600 RPM variable speed and depth scales let you dial in precision. A durable metal body, cooling system, and overload shut‑off make it ready for demanding shop or field work.
- Motor Power:1550W motor
- Max Hole Diameter:2.4 in (60 mm) coring diameter
- Max Drilling Depth:2.4 in (60 mm) max coring depth (implied by 60 mm capacity)
- Magnetic Holding Force:2922 lbf / 13000N
- Speed Range / Control:0–600 RPM adjustable speed
- Cooling System:Efficient cooling system (no specific capacity stated)
- Additional Feature:3-in-1 functionality
- Additional Feature:Integrated depth scales
- Additional Feature:Overload shut-off protection
Factors to Consider When Choosing a Magnetic Drill Press
At the time of comparing magnetic drill press models, buyers must initially assess core performance factors such as motor power and torque, magnetic base strength, and speed range control. It is equally crucial to match drilling and coring capacity to the thickness and type of material typically handled. Build quality and total durability then determine how reliably the tool will perform under regular or heavy-duty use.
Motor Power and Torque
Although magnetic drill presses share many design similarities, their motor power and torque outputs largely determine what jobs they can handle. Typical motors range from about 1300W to 1950W, with higher wattage translating into greater capability for driving large cutters through hard or thick metals. Sufficient torque is essential for maintaining stable rpm under heavy load, reducing the risk of stalling or overheating mid-cut.
Whenever paired with variable speed control, strong torque lets the operator fine‑tune rpm for specific materials and bit diameters, improving cutting efficiency and extending tool and cutter life. Overload protection tied to motor performance further preserves the drill, automatically stopping the motor once torque demand or heat reaches damaging levels.
Magnetic Base Strength
Securing a magnetic drill press starts with evaluating the strength and quality of its magnetic base. Magnetic base strength is typically rated in pounds-force (lbf) or newtons (N), with serious professional units often supplying around 12,800–13,000 N (approximately 2,878–2,922 lbf) of holding force. This level of grip keeps the drill stable during vertical, horizontal, and even overhead or upside-down work.
High-purity or thick iron bases contribute to stronger, more consistent magnetic fields and better surface contact on steel plates. Manufacturers usually specify a minimum material thickness, commonly about 10 mm (0.39 inches), to achieve rated holding power. Many electromagnetic bases also incorporate overload protection and switched activation, ensuring full magnetic force is available exactly at the moment required.
Speed Range Control
Precisely controlling speed is central to getting the most out of a magnetic drill press, because different metals and hole sizes demand different RPM settings for clean, efficient cuts. Models with variable speed control let operators tune RPM to the specific material and hole diameter, rather than relying on a single compromise setting.
Top-tier units typically offer ranges from near zero up to about 800 RPM, covering slow, torque-heavy work through faster production boring. Stepless dials or multi-gear transmissions provide fine adjustment, helping to maintain surface finish and extend bit life. Forward and reverse functions, combined with appropriate speed, make tapping and bit removal easier. A broad, controllable speed range also reduces overheating, protecting both tooling and workpiece across diverse metal thicknesses.
Drilling and Coring Capacity
Upon evaluating drilling and coring capacity on a magnetic drill press, the key metrics are the maximum hole diameter and usable depth the machine can reliably achieve in metal. Capacity typically ranges from about 1.57 inches up to 2.4 inches in diameter, and around 2 inches deep or more, dictating whether a model can handle light fabrication or heavy structural plate work.
Coring capacity usually matches or exceeds twist drill limits, enabling efficient production of larger holes demanded in industrial, construction, and fabrication settings. Depth capacity, often verified with built‑in scales, is critical during working on thicker materials to guarantee through‑holes are completed in a single setup. Professionals should map both drilling and coring ranges directly to expected plate thicknesses and hole-size requirements.
Build Quality and Durability
Although magnetic drill presses are often evaluated on power and capacity, build quality and durability ultimately determine whether a machine can perform reliably in harsh, real-world conditions. Serious users look for frames and guide rails made from corrosion- and wear-resistant alloys, such as titanium magnesium, to maintain rigidity and alignment under heavy use. A durable metal body paired with a high-precision spindle resists deformation, preserving accuracy during intensive drilling or coring.
Thick, high-purity iron bases deliver strong magnetic adhesion while withstanding rough industrial environments. Integrated depth scales, whenever combined with a sturdy frame, help sustain repeatable precision over long service lives. Reliable overload management and efficient cooling further protect internal components, supporting consistent performance in demanding professional applications.
Safety and Protection Features
During the evaluation of magnetic drill presses, safety and protection features are just as crucial as power and capacity. Overload protection is a primary consideration, as it prevents motor damage under heavy or prolonged loads and reduces the risk of sudden failures that could endanger the operator.
A strong magnetic base, often rated around 13,000 N or higher, is essential for secure adhesion to steel surfaces, minimizing unintended movement during drilling. Built-in depth scales further improve safety by enabling controlled, repeatable hole depths and reducing the likelihood of drilling into concealed components.
For overhead, inverted, or horizontal work, provision for safety ropes or straps is also significant, helping prevent accidental drops or shifts of the drill press.
Cooling and Lubrication System
Beyond protective mechanisms and magnetic hold, the effectiveness of a magnetic drill press also depends on how well it manages heat and friction at the cutting point. A dedicated cooling and lubrication system, typically consisting of a coolant bottle and tubing, delivers lubricant straight to the drill bit during operation.
Consistent coolant flow limits heat buildup, reducing the risk of overheating and greatly extending tool life. This controlled temperature management promotes smooth drilling action, minimizes wear on cutting edges, and maintains reliable performance under heavy-duty cycles. Quick push-fit tube connections on some models allow fast setup and straightforward refilling of the reservoir, encouraging regular use. Adequate lubrication also improves hole quality by cutting friction, preventing surface damage, and protecting both the workpiece and the drill press.
Portability and Workspace Fit
Selecting a magnetic drill press that suits both portability and workspace constraints is crucial for efficient operation. Buyers should initially inspect overall size and dimensions to confirm the unit fits benches, vehicles, and common setup areas without obstructing other tools. Weight is equally significant, especially for technicians who frequently relocate between job sites or perform overhead drilling.
Compact models with well-placed ergonomic handles or grips improve maneuverability and reduce fatigue during carrying the tool up ladders or across large facilities. Versatile positioning options—such as reliable horizontal, vertical, and upside-down mounting— help the drill adapt to tight or awkward steel structures. Finally, units that use lightweight yet durable materials provide a better balance between ruggedness and true grab-and-go portability.
